Technical Specification/技術規(guī)格

- Size/規(guī)格：DN50-DN300
- End/連接法蘭：ISO PN6/10/16
- Work pressure/工作壓力：PN10/PN16
- Work temperature/工作溫度：-10℃～110℃

 Structure Character/結構特點

- Stem keeping in position by circlips
- Operated by lever or gearbox
- Spherical machining disc for a perfect tightness
- Disc lined with different rubber for different medium.
- Epoxy coating on body

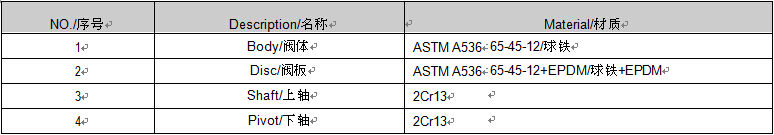

Main Components and Materials/主要零件和材質

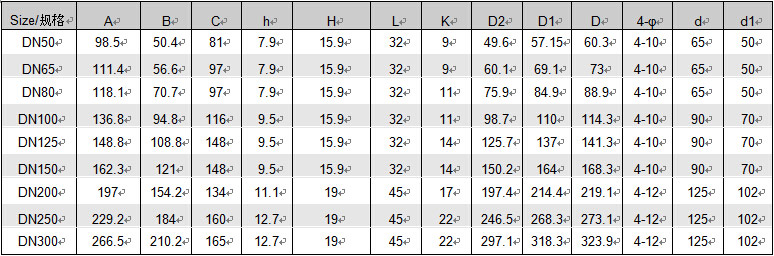

Dimensions/尺寸
